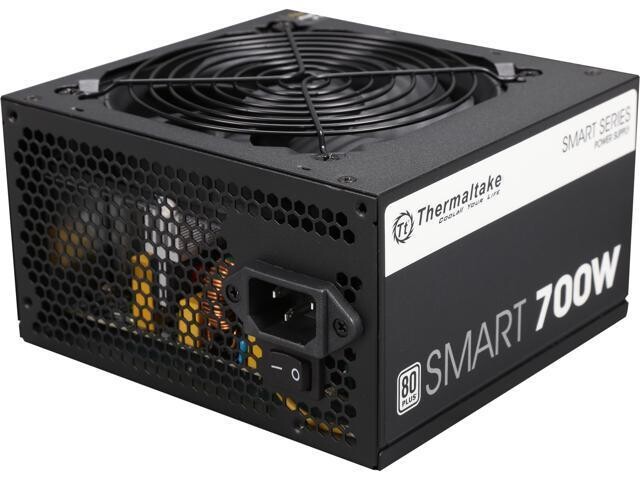

Thermaltake SMART Series 700 W ATX 12V 2.3 80 PLUS Certified Non-Modular Active PFC PFC SLI CrossFire Power Supply

Store / Computer Hardware
$70.99
In stock
Product Details

Thermaltake SMART Series PS-SPD-0700NPCWUS-W 700 W Intel ATX 12V 2.3 SLI Ready CrossFire Ready 80 PLUS Certified Non-Modular Active PFC PFC SLI CrossFire Power Supply

General
Brand Thermaltake
Series SMART Series
Model PS-SPD-0700NPCWUS-W
Details
Type Intel ATX 12V 2.3
Maximum Power 700 W
Fans 1 x 120mm Fan (1800 RPM +/- 10%)
PFC Active
Main Connector 24Pin
+12V Rails Single
PCI-Express Connector 2 x 6+2-Pin
SATA Power Connector 6
SLI SLI Ready
Haswell Support Ready
CrossFire CrossFire Ready
Modular Non-Modular
Power Good Signal 100-500ms
Hold-up Time 16msec (minimum) within 60% load
Efficiency 80 - 87% efficiency @ 20 - 100% load
Energy-Efficient 80 PLUS Certified
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 12 A (Max.)
Output +3.3V@24A, +5V@17A, +12V@54A, -12V@0.5A, +5VSB@2.5A
MTBF >100,000 Hours
Approvals CE, CB, TUV, UL, FCC
Max PSU Length 140 mm
Connectors 1 x 20+4-pin ATX
1 x 4+4-pin EPS
2 x 6+2 PCI-E
6 x SATA
5 x Peripheral
1 x Floppy
Features
Features Compliance with Intel ATX12V 2.31 & EPS12V 2.92 standards

80 PLUS Certified - 80% efficiency under typical load

Single +12V rail Design

Supports Intel C6 Status for improved efficiency

Ultra-quiet 120mm fan with intelligent temperature control

Hardlined cables for straight forward installation
Dimension & Weight
Dimensions 3.39" x 5.91" x 5.51"
Weight 4.65 lbs.
Details
PFC Active
SLI Ready
CrossFire Ready
Connectors
SATA Power Connector 6
