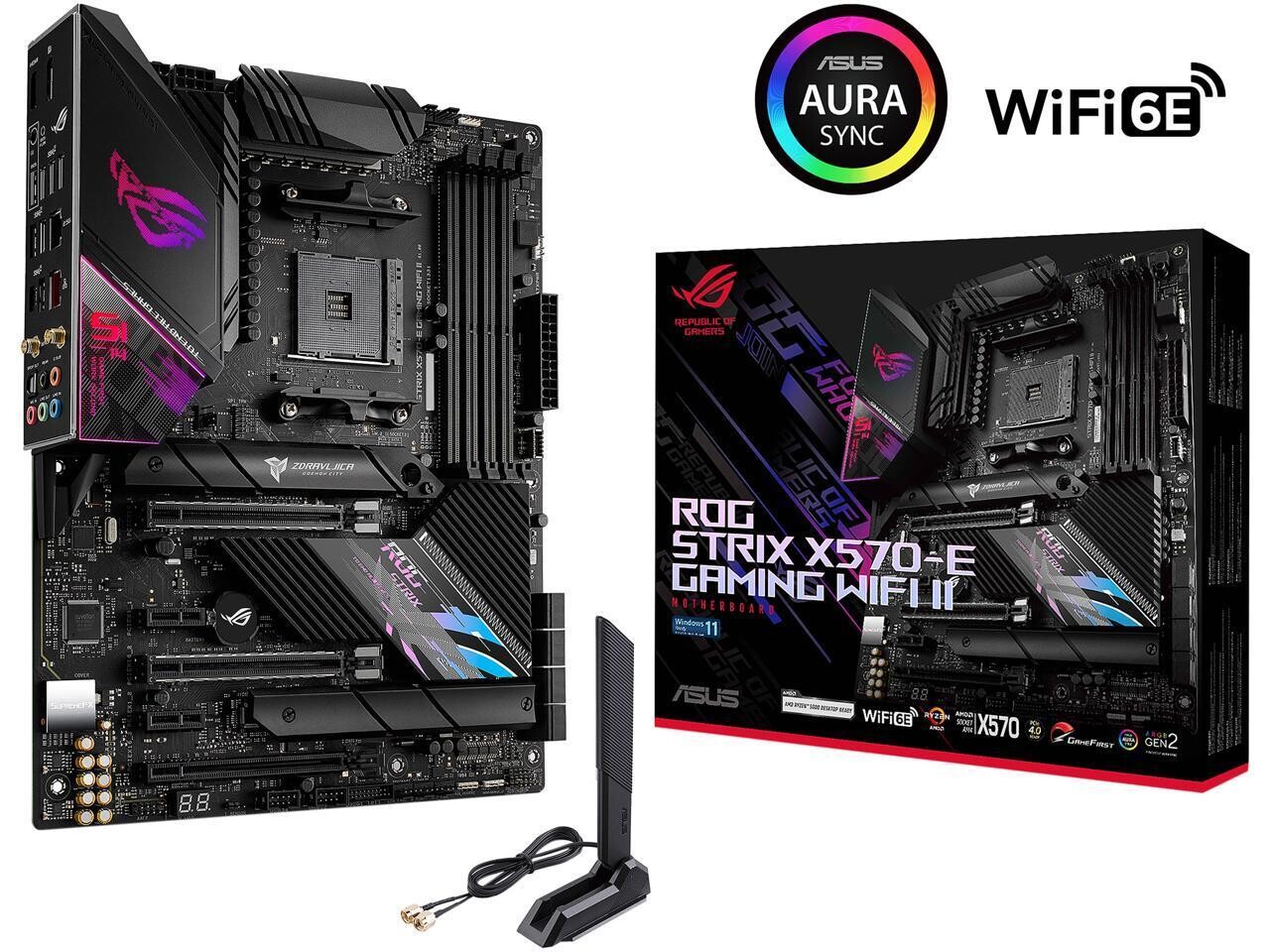

ASUS ROG STRIX X570-E GAMING WIFI II AM4 AMD X570 SATA 6Gb/s USB 3.0 HDMI ATX AMD Motherboard

Model

Brand	ASUS
Series	ROG
Model	STRIX X570-E GAMING WIFI II

Supported CPU

CPU Socket Type	AM4
CPU Type	Supports AMD Ryzen 5000 / 3000 / 2000 Series Processors* Supports AMD Ryzen 5000 / 4000 / 3000 / 2000 G-Series Processors* * Refer to www.asus.com for CPU support list.

Chipsets

Chipset	AMD X570

Memory

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR4 5100(OC) / 4800(OC) / 4600(OC) / 4466(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3600(OC) / 3466(OC) / 3200 / 3000 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 and 4000 G-Series Processors) DDR4 4600(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3400(OC) / 3200 / 3000 / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 5000 Series / 3000 Series Processors) DDR4 3600(OC) / 3466(OC) / 3400(OC) / 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 2000 Series Processors) DDR4 3200(OC) / 3000(OC) / 2933 / 2800 / 2666 / 2400 / 2133 (AMD Ryzen 2000 and 3000 G-Series Processors) * Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.
Maximum Memory Supported	128GB
Channel Supported	Dual Channel
ECC Supported	ECC Memory (ECC mode) support varies by CPU.
Buffer Supported	Un-buffered

Expansion Slots

PCI Express 4.0 x16	3 x PCI Express 4.0 x16* * Actual support may vary by CPU. * PCIeX16_3 slot shares bandwidth with PCIeX1_2.
PCI Express 3.0 x16	1 x PCI Express 3.0 x16
PCI Express x16	None
PCI Express x1	2 x PCIe 4.0 x1

Storage Devices

SATA 6Gb/s	8 x SATA 6Gb/s
M.2	AMD Ryzen 5000 Series/ 3000 Series Desktop Processors: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes) AMD Ryzen 5000 G-Series/4000 G-Series/ 3000 G-Series/ 2000 G-Series/2000 Series Processor: M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 3.0 x4 & SATA modes) AMD X570 Chipset: M.2_2 slot (Key M), type2242/2260/2280/22110 (supports PCIe 4.0 x4 & SATA modes)
SATA RAID	0/1/10

Onboard Video

Onboard Video Chipset	Supported only by CPU with integrated graphic

Onboard Audio

Audio Chipset	Realtek S1220A
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	Realtek 2.5Gb Ethernet
Second LAN Chipset	Intel I211-AT
Max LAN Speed	10/100/1000/2500Mbps + 10/100/1000Mbps
Wireless LAN	Wi-Fi 6E 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

Back I/O Ports	8 x USB 3.2 Gen 2 ports (7 x Type-A + 1 x USB Type-C) 1 x DisplayPort 1 x HDMI port 1 x Wi-Fi Module 1 x Intel I211-AT 1Gb Ethernet port 1 x Realtek 2.5Gb Ethernet port 5 x Gold-plated audio jacks 1 x Optical S/PDIF out port 1 x BIOS FlashBack button
HDMI	1 x HDMI
USB 3.0	5 x USB 3.0

Internal I/O Connectors

Onboard USB

1 x USB 3.2 Gen 2 connector (supports USB Type-C) 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports 2 x USB 2.0 headers support additional 4 USB 2.0 ports

Other Connectors

Fan and Cooling related 1 x 4-pin CPU Fan header 1 x 4-pin CPU OPT Fan header 1 x 4-pin AIO Pump header 2 x 4-pin Chassis Fan headers 1 x 4-pin M.2 Fan header 1 x W_PUMP+ header Miscellaneous 2 x Addressable Gen 2 headers 2 x AURA RGB headers 1 x Clear CMOS header 1 x Front Panel Audio header (AAFP) 1 x SPI TPM header (14-1pin) 1 x Speaker header 1 x 10-1 pin System Panel header 1 x Thermal Sensor header

Physical Spec

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin Main Power connector 1 x 8-pin +12V Power connector 1 x 4-pin +12V Power connector

Windows 11 Compatibility

Windows 11	Supported

Features

Features

Special Features: Extreme Engine Digi+ - 5K Black Metallic Capacitors ASUS Q-Design - M.2 Q-Latch - Q-Code - Q-DIMM - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green]) - Q-Slot ASUS Thermal Solution - M.2 heatsink ASUS EZ DIY - BIOS FlashBack button - BIOS FlashBack LED - ProCool II - Pre-mounted I/O shield - SafeSlot AURA Sync - AURA RGB headers - Addressable Gen 2 headers Software Features: ROG Exclusive Software - RAMCache III - ROG CPU-Z - GameFirst V - Sonic Studio III + Sonic Studio Virtual Mixer - Sonic Radar III - DTS Sound Unbound - Overwolf - Anti-virus software ASUS Exclusive Software Armoury Crate - AIDA64 Extreme (60 days free trial) - AURA Creator - AURA Sync - Two-Way AI Noise Cancelation AI Suite 3 - 5-Way Optimization by Dual Intelligent Processors 5 TPU EPU DIGI+ VRM Fan Xpert 4 Turbo app - EZ update DAEMON Tools WinRAR UEFI BIOS ASUS EZ DIY - ASUS CrashFree BIOS 3 - ASUS EZ Flash 3 - ASUS UEFI BIOS EZ Mode Dynamic OC Switcher BIOS: 256 Mb Flash ROM, UEFI AMI BIOS Manageability: WOL by PXE Operating System: Windows 10 64-bit, Windows 11 64-bit

Packaging

Package Contents	Accessories: Cables 4 x SATA 6Gb/s cables 1 x Thermistor cable pack Miscellaneous 1 x ASUS Wi-Fi moving antennas 1 x Cable ties pack 1 x M.2 Rubber Package 1 x M.2 Q-Latch package 1 x ROG key chain 1 x ROG Strix stickers 1 x ROG Strix thank you card Installation Media 1 x Support DVD Documentation 1 x User manual
