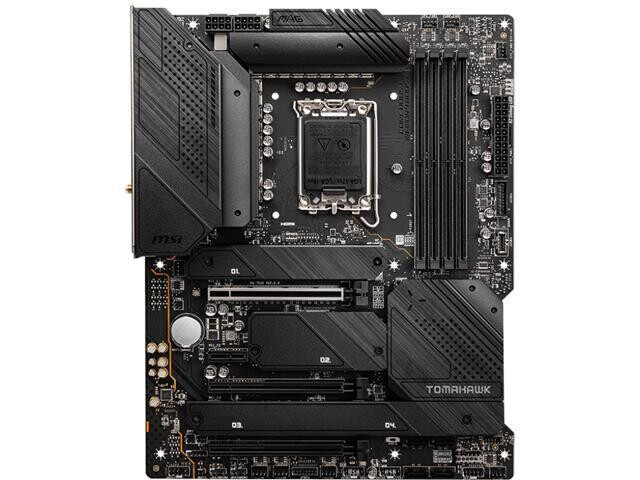

MSI MAG Z690 TOMAHAWK WIFI LGA 1700 Intel Z690 SATA 6Gb/s DDR5 ATX Intel Motherboard

Model

Brand	MSI
Model	MAG Z690 TOMAHAWK WIFI

Supported CPU

CPU Socket Type	LGA 1700 * Dedicated LGA1700 mounting bracket is required.
CPU Type	Supports 12th Gen Intel Core / Pentium Gold / Celeron Processors * Please go to msi.com to get the newest support status as new processors are released.

Chipsets

Chipset	Intel Z690

Onboard Video

Onboard Video Chipset	Supported only by CPU with integrated graphic

Memory

Number of Memory Slots	4x288pin (DDR4)
Memory Standard	DDR5 1R 4800 (by JEDEC & POR) Max overclocking frequency: 1DPC 1R Max speed up to 6400+ 1DPC 2R Max speed up to 5400+ 2DPC 1R Max speed up to 4000+ 2DPC 2R Max speed up to 4000+
Maximum Memory Supported	128GB
Channel Supported	Dual Channel

Expansion Slots

PCI Express 5.0 x16	1 x PCI Express 5.0 x16 * Actual support may vary by CPU.
PCI Express 3.0 x16	2 x PCI Express 3.0 x16 * PCI_E3 Support up to PCIe 3.0 x4. * PCI_E4 Support up to PCIe 3.0 x1.
PCI Express x1	1 x PCI Express 3.0 x1

Storage Devices

SATA 6Gb/s	6 x SATA 6Gb/s
M.2	4 x M.2 slots (Key M): M2_1 slot (From CPU): Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280/ 22110 storage devices M2_2 slot (From Z690 chipset): Supports up to PCIe 4.0 x4 Supports 2242/ 2260/ 2280 storage devices M2_3 slot (From Z690 chipset): Supports up to PCIe 3.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices M2_4 slot (From Z690 chipset): Supports up to PCIe 4.0 x4 Supports up to SATA 6Gb/s Supports 2242/ 2260/ 2280 storage devices
Intel Optane Ready	Intel Optane Memory Ready for M.2 slots from Z690 Chipset
SATA RAID	0/1/5/10

Onboard Audio

Audio Chipset	Realtek ALC4080
Audio Channels	7.1 Channels

Onboard LAN

LAN Chipset	Intel I225-V
Max LAN Speed	10/100/1000/2500Mbps
Wireless LAN	Intel WIFI 6E 802.11 a/b/g/n/ac/ax
Bluetooth	Bluetooth 5.2

Rear Panel Ports

Back I/O Ports	1 x DisplayPort 1.4 1 x HDMI 2.1 1 x Flash BIOS Button 1 x LAN (RJ45) 2 x Antenna Bracket 1 x Optical S/PDIF Out 5 x Audio Jacks 1 x USB 3.2 Gen 2x2 Type-C 3 x USB 3.2 Gen 2 Type-A 2 x USB 3.2 Gen 1 Type-A 2 x USB 2.0/1.1

Internal I/O Connectors

Onboard USB

1 x USB 3.2 Gen 2 10Gbps Type-C port 1 x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports) 2 x USB 2.0 Type-A connectors (supports additional 4 USB 2.0 ports)

Other Connectors

1 x 4-pin CPU fan connector 1 x 4-pin water-pump fan connector 6 x 4-pin system fan connectors 1 x Front panel audio connector 2 x System panel connectors 1 x Chassis Intrusion connector 1 x TPM module connector 1 x Clear CMOS jumper 1 x TBT connector (supports RTD3) 1 x Tuning Controller connector 1 x EZ LED Control switch 1 x 4-pin RGB LED connectors 3 x 3-pin RAINBOW LED connectors 4 x EZ Debug LED

Physical Spec

Form Factor	ATX
LED Lighting	RGB
Dimensions (W x L)	12.0" x 9.6"
Power Pin	1 x 24-pin ATX main power connecto 2 x 8-pin ATX 12V power connectors

Windows Compatibility

Windows 11	Supported

Features

Features

Supports 12th Gen Intel Core, Pentium Gold and Celeron processors for LGA 1700 socket Supports DDR5 Memory, up to 6400(OC) MHz Premium Thermal Solution: Extended Heatsink Design and M.2 Shield Frozr are built for high performance system and non-stop works 2.5G LAN and Intel Wi-Fi Solution: Upgraded network solution for professional and multimedia use. Delivers a secure, stable and fast network connection Lightning M.2: Running at PCIe Gen 5 maximizes performance for NVMe based SSDs Lightning USB 20G: Built-in USB 3.2 Gen 2x2 port, offers 20Gbps transmission speed, 4X faster than USB 3.2 Gen 1 AUDIO BOOST 5: Reward your ears with studio grade sound quality for the most immersive gaming experience Multi-GPU: With Steel armor PCIe slots. Supports AMD Crossfire
