MSI H510-A PRO
+3

MSI H510-A PRO

824142242339
$119.99
In stock
1
Product Details
UPC: 824142242339
Brand: MSI
Condition: NEW

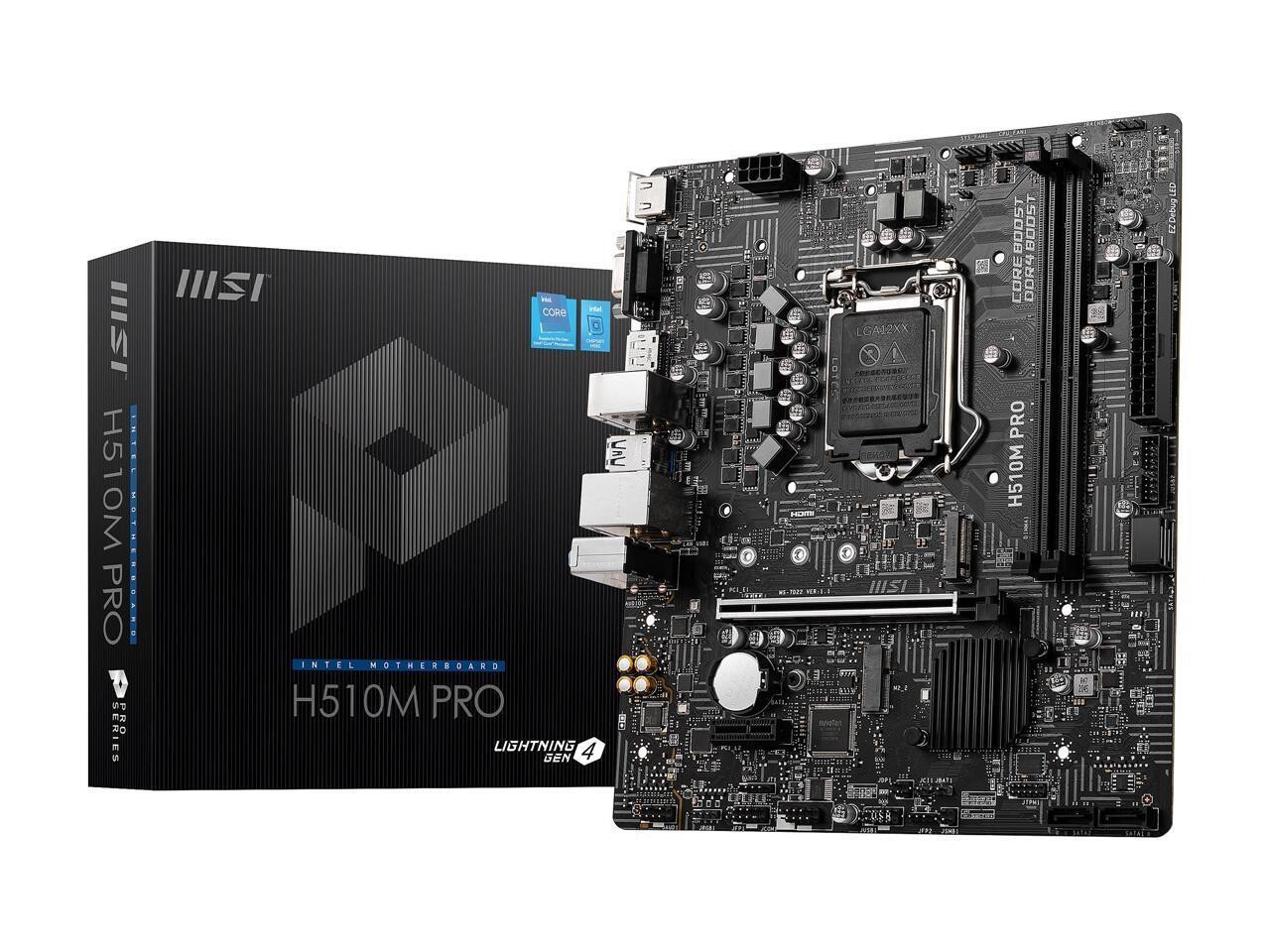

MSI H510M PRO LGA 1200 Intel H510 SATA 6Gb/s Micro ATX Intel Motherboard

Model
Brand MSI
Model H510M PRO
Supported CPU
CPU Socket Type LGA 1200
CPU Type Supports 11th / 10th Gen Intel Core processors
Supports Intel Pentium Gold / Celeron processors
Chipsets
Chipset Intel H510
Onboard Video
Onboard Video Chipset Supported only by CPU with integrated graphic
Memory
Number of Memory Slots 2×288pin
Memory Standard DDR4 3200
Maximum Memory Supported 64GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 4.0 x16 1 x PCI Express 4.0 x16*

* Actual support may vary by CPU.
PCI Express x1 1 x PCIe 3.0 x1
Storage Devices
SATA 6Gb/s 4 x SATA 6Gb/s
M.2 1 x M.2 Gen3 x4 slot
Onboard Audio
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Intel I219-V
Max LAN Speed 10/100/1000Mbps
Rear Panel Ports
Back I/O Ports 1 x DisplayPort
1 x D-Sub
1 x HDMI
1 x LAN (RJ45)
1 x PS/2 Keyboard/Mouse Combo
2 x USB 3.2 Gen 1 Type-A
3 x Audio Jacks
4 x USB 2.0/1.1
Physical Spec
Form Factor Micro ATX
