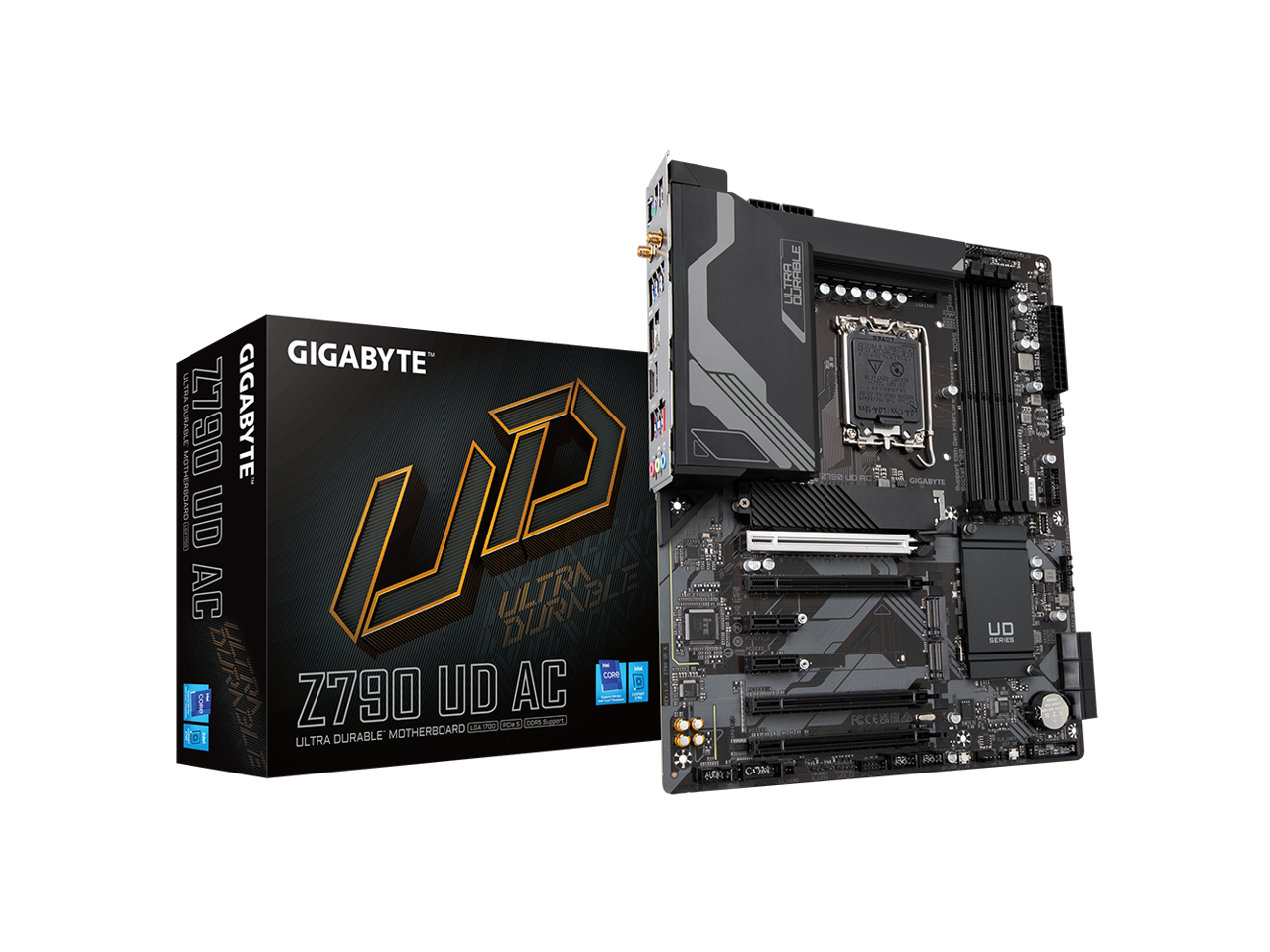

GIGABYTE Z790 UD AC DDR5

Store / Computer Hardware
$209.99
In stock: 1 available
Product Details
UPC: 889523034460
Model
Brand GIGABYTE
Model Z790 UD AC
Supported CPU
CPU Socket Type LGA 1700
CPU Type Supports 13th / 12th Gen Intel Core, Pentium Gold, Celeron Processors
Chipsets
Chipset Intel Z790
Memory
Number of Memory Slots 4x288pin (DDR5)
Memory Standard Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

Dual channel memory architecture
Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
Support for Extreme Memory Profile (XMP) memory modules
Maximum Memory Supported 128GB
Channel Supported Dual Channel
Expansion Slots
PCI Express 5.0 x16 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
PCI Express 4.0 x16 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
PCI Express 3.0 x16 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1, PCIEX1_4)
PCI Express x1 2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)
Storage Devices
SATA 6Gb/s 6 x SATA 6Gb/s
M.2 CPU:
1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
2 x M.2 connectors (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)
SATA RAID RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Additional RAID Controller RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
Onboard Audio
Audio Chipset Realtek Audio CODEC
High Definition Audio
Audio Channels 7.1 Channels
Onboard LAN
LAN Chipset Realtek 2.5GbE LAN chip
Max LAN Speed 2.5Gbps
Wireless LAN Intel Wi-Fi AC 9560
WIFI a, b, g, n, ac, supporting 2.4/5 GHz Dual-Band
Support for 11ac 160MHz wireless standard and up to 1.73 Gbps data rate

*Actual data rate may vary depending on environment and equipment.
Bluetooth Bluetooth 5.1
Rear Panel Ports
Back I/O Ports 1 x USB Type-C port, with USB 3.2 Gen 2x2 support
1 x USB 3.2 Gen 2 Type-A port (red)
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
2 x SMA antenna connectors (1T1R)
1 x HDMI 2.0 port
1 x DisplayPort
1 x RJ-45 port
3 x audio jacks
Internal I/O Connectors
Onboard USB 1 x USB Type-C header, with USB 3.2 Gen 1 support
1 x USB 3.2 Gen 1 header
2 x USB 2.0/1.1 headers
Other Connectors 1 x CPU fan header
1 x water cooling CPU fan header
3 x system fan headers
1 x system fan/water cooling pump header
2 x addressable LED strip headers
2 x RGB LED strip headers
3 x M.2 Socket 3 connectors
6 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x S/PDIF Out header
1 x serial port header
2 x Thunderbolt add-in card connectors
1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
1 x reset button
1 x Q-Flash Plus button
1 x reset jumper
1 x Clear CMOS jumper
Physical Spec
Form Factor ATX
LED Lighting RGB
Dimensions (W x L) 12.0" x 9.6"
Power Pin 1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
Windows Compatibility
Windows 11 Supported
Features
Features H/W Monitoring
- Voltage detection
- Temperature detection
- Fan speed detection
- Water cooling flow rate detection
- Fan fail warning
- Fan speed control
* Whether the fan (pump) speed control function is supported will depend on the fan (pump) you install.

BIOS
- 1 x 256 Mbit flash
- Use of licensed AMI UEFI BIOS
- PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Unique Features
- Support for GIGABYTE Control Center (GCC)
* Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
- Support for Q-Flash
- Support for Q-Flash Plus
- Support for Smart Backup
