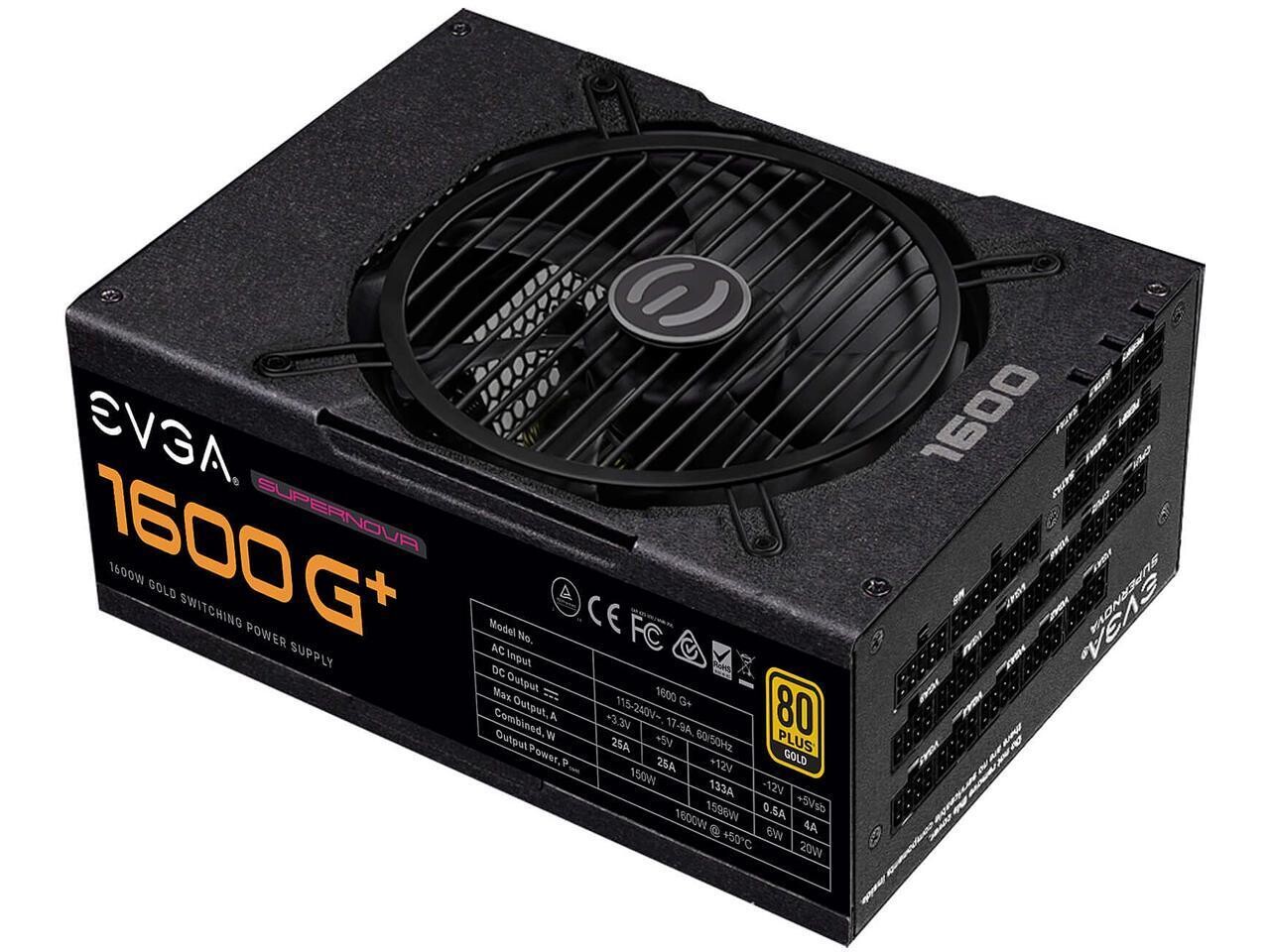

EVGA SuperNOVA 1600 G+ ATX12V / EPS12V 80 PLUS GOLD Certified Full Modular Active PFC Power Supply
$369.99
In stock
Product Details
General
| Brand | EVGA |
|---|---|
| Series | SuperNOVA 1600 G+ |
| Model | 220-GP-1600-X1 |
Details
| Type | ATX12V / EPS12V |
|---|---|
| Maximum Power | 1600 W |
| Fans | 1 x 135mm Fluid Dynamic Bearing Fan |
| PFC | Active |
| Main Connector | 20+4Pin |
| +12V Rails | Single |
| PCI-Express Connector | 14 x 6+2-Pin |
| SATA Power Connector | 14 |
| Haswell Support | Yes |
| Modular | Full Modular |
| Efficiency | 90% or higher (under typical load) |
| Energy-Efficient | 80 PLUS GOLD Certified |
| Protection | Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) |
| Input Voltage | 115 - 240 V |
| Input Frequency Range | 50/60 Hz |
| Input Current | 17 - 9 A |
| Output | +3.3V@25A, +5V@25A, +12V@133A, -12V@0.5A, +5Vsb@4A |
| MTBF | >100,000 Hours |
| Approvals | TUV, CB, CE, FCC, RCM, cTUVus, BSMI, CCC, WEEE, RoHS, Compliance with ErP Lot 3 2014 Requirement |
| Max PSU Length | 200 mm |
| Connectors | 1 x 24 Pin ATX (20+4) 2 x 8 Pin EPS (4+4) 14 x 8 Pin PCIe (6+2) 14 x SATA 8 x Four-Pin Peripheral 1 x Floppy |
Features
| Features | The SuperNOVA G+ is the new and improved fully-modular power supply line-up from EVGA with an 80+ Gold Efficiency rating. These power supplies pick up where the award-winning EVGA 1600 G2 and 1300 G2 power supplies left off and continue the tradition of EVGA quality and performance. Additionally, the SuperNOVA G+ power supplies feature a cleaner internal layout, a Variable Resistor module, two DC to DC modules for more efficient power switching, EVGA ECO Mode, a full suite of power supply protections, and EVGA’s World-Leading Global 10-Year Warranty on all G+ power supplies. EVGA ECO Intelligent Thermal Control System eliminates fan noise at low to medium loads 80 PLUS Gold certified, with 90% efficiency or higher under typical loads. Heavy-duty protections, including OVP (Over Voltage Protection), UVP (Under Voltage Protections), OCP (Over Current Protection), OPP (Over Power Protection), SCP (Short Circuit Protection), and OTP (Over Temperature Protection) |
|---|
Dimension & Weight
| Dimensions | 3.39" x 5.91" x 7.87" |
|---|---|
| Weight | 4 lbs. |
EVGA SuperNOVA 1600 G+ ATX12V / EPS12V 80 PLUS GOLD Certified Full Modular Active PFC Power Supply
