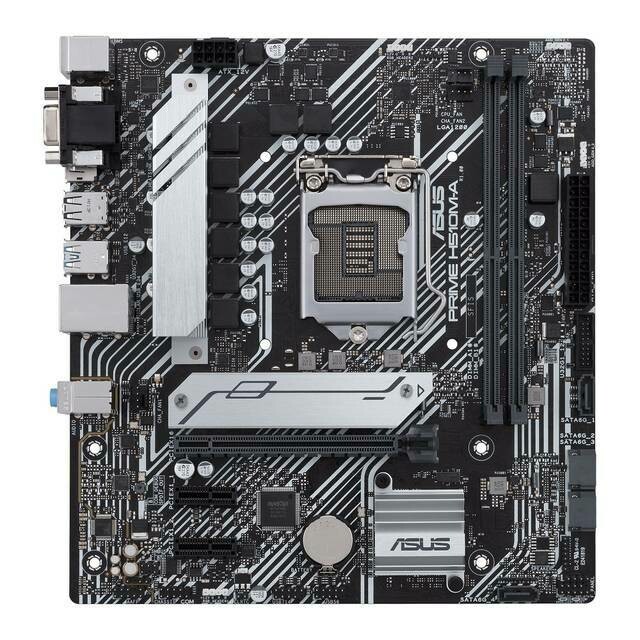

Asus PRIME H510M-A/CSM Socket LGA1200/ Intel H510/ DDR4/ SATA3&USB3.2/ M.2/ mATX Motherboard
+3

Asus PRIME H510M-A/CSM Socket LGA1200/ Intel H510/ DDR4/ SATA3&USB3.2/ M.2/ mATX Motherboard

195553128490
$109.99
In stock
1
Product Details
UPC: 195553128490
Brand: ASUS
Condition: New
  • CPU:
    • Intel Socket LGA1200 for 11th Gen Intel Core processors & 10th Gen Intel Core, Pentium Gold and Celeron Processors
    • Supports Intel 14 nm CPU
    • Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
  • Chipset: Intel H510 Chipset
  • Memory:
    • 2 x DIMM, Max. 64GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory
    • Dual Channel Memory Architecture
    • Supports Intel Extreme Memory Profile (XMP)
  • Graphics:
    • 1 x DisplayPort 1.4
    • 1 x D-Sub
    • 1 x HDMITM 2.0
  • Expansion Slots:
    • Intel 11th & 10th Gen Processors: 1 x PCIe 4.0/3.0 x16 slot
      - Intel 11th Gen processors support PCIe 4.0 x16
      - Intel 10th Gen processors support PCIe 3.0 x16
    • Intel H510 Chipset
      - 2 x PCIe 3.0 x1 slots
  • Storage:
    • Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports
    • Intel H510 Chipset
      - M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)
      - 4 x SATA 6Gb/s ports
  • Ethernet: 1 x Intel I219-V 1Gb Ethernet
  • USB Ports:
    • Rear USB (Total 6 ports)
      - 2 x USB 3.2 Gen 1 ports (2 x Type-A)
      - 4 x USB 2.0 ports (4 x Type-A)
    • Front USB (Total 6 ports)
      - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
      - 2 x USB 2.0 headers support additional 4 USB 2.0 ports
  • Audio:
    • Realtek ALC897/887 7.1 Surround Sound High Definition Audio CODEC
      - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
      - Supports up to 24-Bit/192 kHz playback
    • Audio Features
      - Audio Shielding
      - Premium Japanese audio capacitors
      - Dedicated audio PCB layers
  • Back Panel I/O Ports:
    • 2 x USB 3.2 Gen 1 ports (2 x Type-A)
    • 4 x USB 2.0 ports (4 x Type-A)
    • 1 x DisplayPort
    • 1 x D-Sub port
    • 1 x HDMI port
    • 1 x Intel I219-V 1Gb Ethernet port
    • 3 x Audio jacks
    • 1 x PS/2 Keyboard (purple) port
    • 1 x PS/2 Mouse (green) port
  • Internal I/O Ports:
    • Fan and Cooling related
      - 1 x 4-pin CPU Fan header
      - 2 x 4-pin Chassis Fan headers
    • Power related
      - 1 x 24-pin Main Power connector
      - 1 x 8-pin +12V Power connector
    • Storage related
      - 1 x M.2 slot (Key M)
      - 4 x SATA 6Gb/s ports
    • USB
      - 1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
      - 2 x USB 2.0 headers support additional 4 USB 2.0 ports
    • Miscellaneous
      - 2 x AURA Addressable Gen 2 headers
      - 2 x AURA RGB headers
      - 1 x Clear CMOS header
      - 1 x COM Port header
      - 1 x Front Panel Audio header (AAFP)
      - 1 x S/PDIF Out header
      - 1 x Speaker header
      - 1 x SPI TPM header (14-1pin)
      - 1 x 10-1 pin System Panel header
  • ASUS Special Features:
    • ASUS 5X PROTECTION III
      - DIGI+ VRM
      - LANGuard
      - Overvoltage Protection
      - SafeSlot Core
      - Stainless-Steel Back I/O
    • ASUS Q-Design
      - Q-DIMM
      - Q-Slot
    • ASUS Thermal Solution
      - M.2 heatsink
      - VRM heatsink design
    • AURA Sync
      - AURA RGB headers
      - Addressable Gen 2 RGB headers
  • Software Features:
    • ASUS Exclusive Software
    • Armoury Crate
      - AURA Creator
      - AURA Sync
    • AI Suite 3
      - Performance And Power Saving Utility
    • TurboV EVO
    • EPU
    • DIGI+ VRM
    • Fan Xpert 2+
      - EZ update
    • ASUS CPU-Z, AI Charger, DAEMON Tools
    • Norton Anti-virus software (Free Trial version)
    • WinRAR, UEFI BIOS
    • ASUS EZ DIY
      - ASUS CrashFree BIOS 3
      - ASUS EZ Flash 3
      - ASUS UEFI BIOS EZ Mode
  • BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
  • Manageability: WOL by PME, PXE
  • Accessories:
    • Cables
      - 2 x SATA 6Gb/s cables
    • Miscellaneous
      - 1 x I/O Shield
      - 1 x M.2 Rubber Package
      - 1 x M.2 SSD screw package
    • Installation Media
      - 1 x Support DVD
    • Documentation
      - 1 x User manual
  • Operating System: Windows 10 64-bit
  • Form Factor:
    • mATX Form Factor
    • 8.9 inch x 8.3 inch ( 22.6 cm x 21.1 cm )
