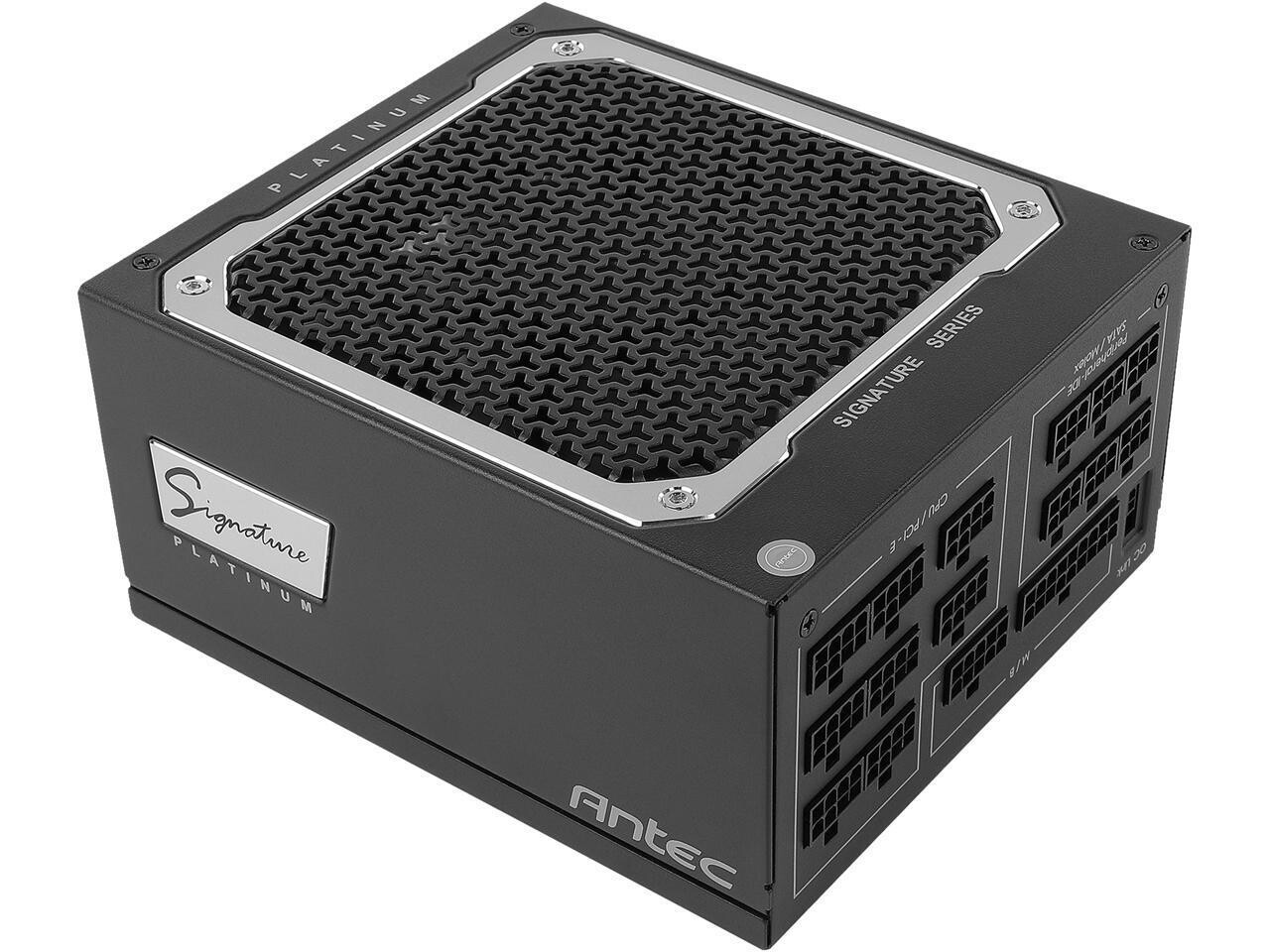

Antec Signature Series SP1000, 80 PLUS Platinum Certified, 1000W Full Modular

Store / Computer Hardware
$239.99
In stock
Product Details
General
Brand Antec
Series Signature 1000 Platinum
Model SP1000
Details
Type ATX
Maximum Power 1000 W
Fans 1 x 135mm FDB Silent Fan
PFC Active
Main Connector 20+4Pin
+12V Rails Single
PCI-Express Connector 8 x 6+2-Pin
SATA Power Connector 14
Modular Full Modular
Power Good Signal 100-500ms
Efficiency > 90%
Energy-Efficient 80 PLUS PLATINUM Certified
Over Voltage Protection Yes
Input Voltage 100 - 240 V
Input Frequency Range 50/60 Hz
Input Current 13 - 6.5A
Output +3.3V@25A, +5V@25A, +12V@83A, -12V@0.3A, +5VSB@3.0A
Approvals CB, CE, FCC, BSMI, TUV, cTUVus, 3C, RCM
Max PSU Length 170 mm
Connectors 1 x MB 24(20+4) Pin
2 x 8(4+4) Pin EPS 12V
8 x 8(6+2) Pin PCI-E
14 x SATA
5 x Molex
1 x FDD
Features
Features 80 PLUS Platinum Certified, with up to 92% energy efficiency under regular loads

100% Top-Grade Japanese Heavy-Duty Capacitors ensure long-term reliability with Antec Quality 10-year warranty

28(18+10) pin MBU Socket for possible future MBU connectors

135 mm FDB Silence: Whisper-quiet high-quality fluid-dynamic bearing fan with long lifetime

PhaseWave Design-A server-class full-bridge LLC design with a synchronous rectification based on a DC-DC topology

Zero RPM Manager: An advanced low voltage fan control with fan-off mode at low loads for absolute silence

CircuitShield: Full suite of industrial grade protections: OCP, OVP, SCP, OPP, OTP, SIP, NLO

OC Link Feature allows 2 Signature PSUs to work in tandem to power the most demanding systems
Dimension & Weight
Dimensions 3.39" x 5.91" x 6.69"
Weight 4.65 lbs.
Details
PFC Active
SLI No
CrossFire No
Connectors
SATA Power Connector 14
