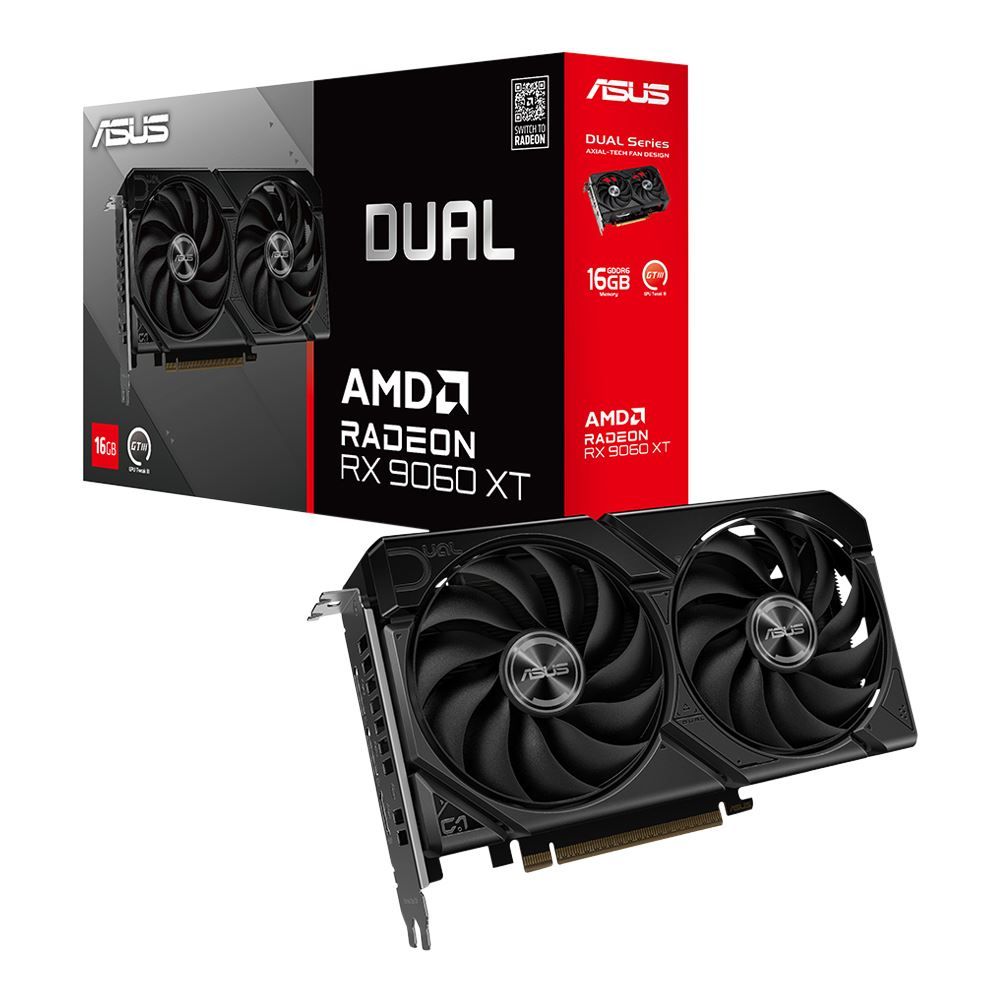

ASUS AMD Radeon RX 9060 XT Dual Fan 16GB GDDR6 PCIe 5.0 Graphics Card

Key Features

• Boostable to 3250 MHz (OC)
• 2048 Stream Processors
• RDNA 4 Architecture
• 16GB of GDDR6 VRAM
• 20 Gb/s Memory Speed
• 128-Bit Memory Interface
• 320 GB/s Memory Bandwidth
• HDMI 2.1 | DisplayPort 2.1
• PCIe 5.0 Interface

Based on the RDNA 4 architecture, the ASUS Radeon RX 9060 XT Dual 16G Graphics Card delivers enhanced ray tracing and AI performance to 4K games and content creation. The GPU features 16GB of GDDR6 VRAM and a 128-bit memory interface, offering improved performance and power efficiency over the previous RDNA-based generation.

The front panel of the card features DisplayPort 2.1a and HDMI 2.1 ports. In addition to high-resolution gaming, computationally intensive programs can utilize the GPU's 32 compute units and 2048 stream processors to accelerate content creation. This GPU can reach overclocked speeds of up to 3250 MHz.

Dual Axial-Tech Fan Cooling

When it comes to cooling, the Dual features two Axial-tech ball bearing fans, which have longer blades for improved airflow and dispersion. The heat sink soaks up the heat while a vented backplate significantly enhances heat dissipation.

SFF Ready

With a 2.5-slot design, this graphics card is compatible with small form-factor builds. A reinforcing backplate adds structural support to help avoid flexing damage.

A dual BIOS switch lets you manually toggle between Performance and Quiet modes.

RDNA 4 Architecture

Realistic Ray Tracing

With 3rd Gen ray tracing accelerators, this GPU delivers up to twice the performance of the previous generation for lifelike lighting, shadows, and reflections.

Supercharged with AI

The 2nd Gen AI accelerators with support for FP8/INT4 formats provide up to 8x higher performance from the previous generation. AMD Noise Suppression uses AI to help reduce background audio noise from your surrounding environment for improved audio clarity while streaming and communicating with teammates.

Next Level Visuals and Streaming

The AMD Radiance Display Engine and Enhanced Media Engine enhance video recording and streaming while enhancing the image quality for AV1, HEVC, and H.264 codecs. Full AV1 encode/decode support delivers exceptional image quality at lower bit rates and smaller file sizes.

Seamless Upscaling

AMD's FidelityFX Super Resolution Technology 4 (FSR 4) is designed to deliver high-quality upscaling with demanding workloads such as 4K gaming with maximum ray tracing settings with supported games.
