Black 2U Rackmount Chassis

RPC-230

Features

Specifications

• Drive Bay: Supports four 3.5" drives and one 5.25" drive
• Cooling Fan: 2 x 80mm ball bearing fans
• Switch: Power ON/OFF x 1, System reset x 1
• Indicator: Power ON/OFF x 1, HDD x 1, Network x 2
• Connector: One front accessible USB port
• Motherboard Compatibility: Supports Micro-ATX (9.6 x 9.6")
• Power Supply Options: Standard ATX power supply
• Packing: Double boxes, 22.5 x 23 x 8"
• Dimensions (L x W x H): 16.9 x 15.25 x 3.5" (430 x 387.3 x 88mm)
• Weight: 14lbs (6.4kg) (NET), 20lbs (9.1kg) (GROSS)
• Environment: 32 - 131°F (0 - 55°C) (Operating), -4 - 140°F (-20 - 60°C) (Non-Operating)
• Relative Humidity: 5% to 95%, non-condensing
• Vibration (5 - 500Hz): 1 Grms (Operating), 2G (Non-Operating)
• Shock: 10G (with 11ms duration, half sine wave) (Operating), 30G (Non-Operating)

Specifications

• Drive Bays:Supports ten 3.5" drives and three 5.25" drives
• Air Filter:Easy access; changeable
• Cooling Fans:2 x 120mm front optional fans, 4 x 80mm middle fans, 2 x 80mm optional rear fans
• Switches:Power ON/OFF x 1, System reset x 1
• Indicators:Power ON/OFF x 1, HDD x 1, NETWORK X 2
• Connector:One front accessible USB port
• Motherboard Compatibility:Supports EEB (12 x 13"), CEB (12 x 10.5"), ATX (12 x 9.6"), Micro ATX (9.6 x 9.6")
• Power Supply Options:Standard ATX, mini redundant power supply
• Dimensions (L x W x H):19 x 25.5 x 7" (483 x 650 x 176mm)
• Packing:Double boxes
• Weight:34lbs (15.5kg) (NET) 37.5lbs (17kg) (GROSS)
• Environment Temperature:32 - 131 °F (0 - 55 °C) (Operating) -4 - 40°F (-20 - 60°C) (Non-Operating)
• Relative Humidity:5% to 95%, non-condensing
• Vibration (5 - 500Hz):1 Grms (Operating), 2G (Non-Operating)
• Shock:10G (with 11ms duration, half sine wave) (Operating), 30G (Non-Operating)

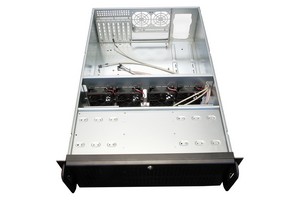

----------Construction Inside View----------
